2stk Kenwood KFCW3013 12" subber i lukka kasse selges!

Featured Replies

Skrevet

2stk Kenwood KFCW3013 12" subber i lukka kasse selges! 400rms! Selges for 1500kr før helja!

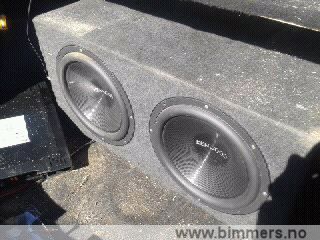

Bilder


Spesifikasjoner:

300mm P.P.Cone with fiber texture

Diamond Array Diaphragm

1200W Maximum Input Power

Dual Ventilation System

Rubber surround

Push Terminals

Reversible gasket

Høyttaler:

Speaker Type: Subwoofer

Peak Input Power 1200W

Rated Input Power 400W

Speaker Size 300mm

Speaker Cone Design Diamond-Array pattern

Magnet Type Ferrit

Terminals Silver-plated Push Type

Dual Ventilation System Yes

Speaker cover Yes, as part of dual ventilation system

Gasket Installation two-sided

Installation Capabillity Sealed/ Ported

Høyttalerspesifikasjoner:

Peak Input Power 1200W

Maximum Input Power 800W

Rated Input Power 400W

Woofer Cone material Injection P.P. Cone

Speaker Basket Steel

Speaker Surround Rubber

Sensitivity 85dB/W/m

Frequency Response 34Hz ~ 300Hz

Subwoofer Impedance 4Ω x 1

Dimensions (W x H x D) 326 x 326 x 170.5mm

Mounting Depth 153mm

Mouting Hole Diameter Ø 282mm

Speaker Weight 6300gr

Weight of Magnet 1780gr

Subwoofer Parameters:

Nominal impedance (Z) 4Ω

DC resistance (Re) 3.4Ω

Resonant frequency (FSO) 25Hz

Mechanical Q factor (QMS) 8.25

Electrical Q factor (QES) 0.91

Total Q factor (QTS) 0.82

Voice coil inductance (LBM) 1.65mH

Voice coil diameter (d) 65mm

Force factor (BL) 10.5T/m

Peak excursion Xmax 15.1mm

Moving mass (MMS) 183gr.

Volume accoustic compliance (VAS) 83.7liter

Piston Area (SD) 0.051m²

Displacement 2155cc

Sealed box volume 35.4liter

Sealed Box Dimensions 475 x 362 x 299mm ( 19mm thick MDF)(WxHxD)

Vented box volume 56.6liter

Vented Box Dimensions 590 x 362 x 355mm ( 19mm thick MDF)(WxHxD)

Port dimensions (labyrinth) (W x H x L) 38 x 324 x 546mm
