Harman kardon surround forsterker SOLGT!!


Zeeks_Racing
 Share

Recommended Posts

kraftig surround forsterker.

fungerer 100%

Selges ikke under 4500,- :wink:

tlf: 48193883

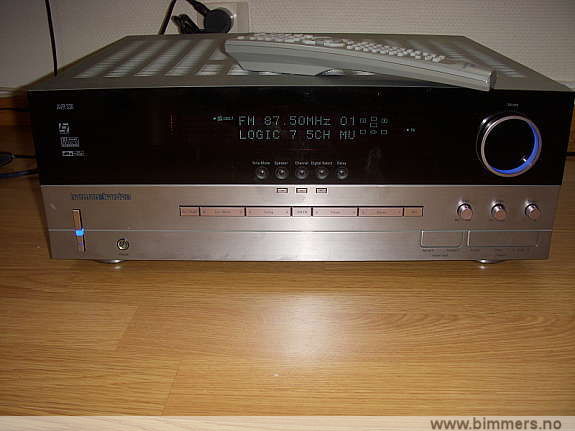

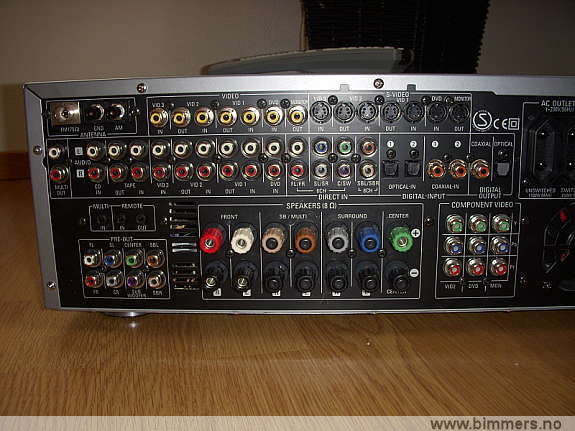

Bilder:



PECIFICATIONS: Audio

Stereo Mode

Continuous Average Power (FTC) per Channel : 65 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Seven-Channel Surround Modes, Power per Individual Channel,

All Channels Operating at Full Power :

Front L & R Channels : 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel : 55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels (L & R Side, L & R Back) : 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Sensitivity/Impedance, Linear (High-Level) : 200mV/47k ohms

Signal-to-Noise Ratio (IHF-A) : 100dB

Surround System Adjacent Channel Separation :

Dolby® Pro Logic® I and II : 40dB

Dolby® Digital : 55dB

DTS® : 55dB

Frequency Response at 1W (+0dB, –3dB) : 10Hz – 130kHz

High Instantaneous Current Capability (HCC) : ±35 Amps

Transient Intermodulation Distortion (TIM) : Unmeasurable

Slew Rate : 40V/µsec

FM Tuner

Frequency Range : 87.5–108.0MHz

Usable Sensitivity : IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio : Mono/Stereo 70/68dB

Distortion : Mono/Stereo 0.2/0.3%

Stereo Separation : 40dB @ 1kHz

Selectivity : ±400kHz, 70dB

Image Rejection : 80dB

IF Rejection : 90dB

AM Tuner

Frequency Range : 520–1720kHz

Signal-to-Noise Ratio : 45dB

Usable Sensitivity : Loop 500µV

Distortion : 1kHz, 50% Mod 0.8%

Selectivity : ±10kHz, 30dB

Video

Television Format : NTSC/PAL

Input Level/Impedance : 1Vp-p/75 ohms

Output Level/Impedance : 1Vp-p/75 ohms

Video Frequency Response :

Composite and S-Video : 10Hz–8MHz (–3dB)

Component Video : 10Hz–30MHz (–3dB)

General

Power Requirement : AC 220-240V / 50Hz

Power Consumption : 118W idle, 890W maximum (7 channels driven)

Unit Dimensions :

Width : 440mm (17.3 inches)

Height : 168mm (6.6 inches)

Depth : 381mm (15 inches)

Unit Weight : 13.9kg (30.6 lb)>

Link to comment
Share on other sites

Jeg har to sub utganger på min AVR 745. Tror det er den eneste som har det av den serien der?! Men jeg bruker kun 1 sub, å det holder i massevis :)

Men H/K anbefales på det sterkeste. Lykke til med salget ;)
